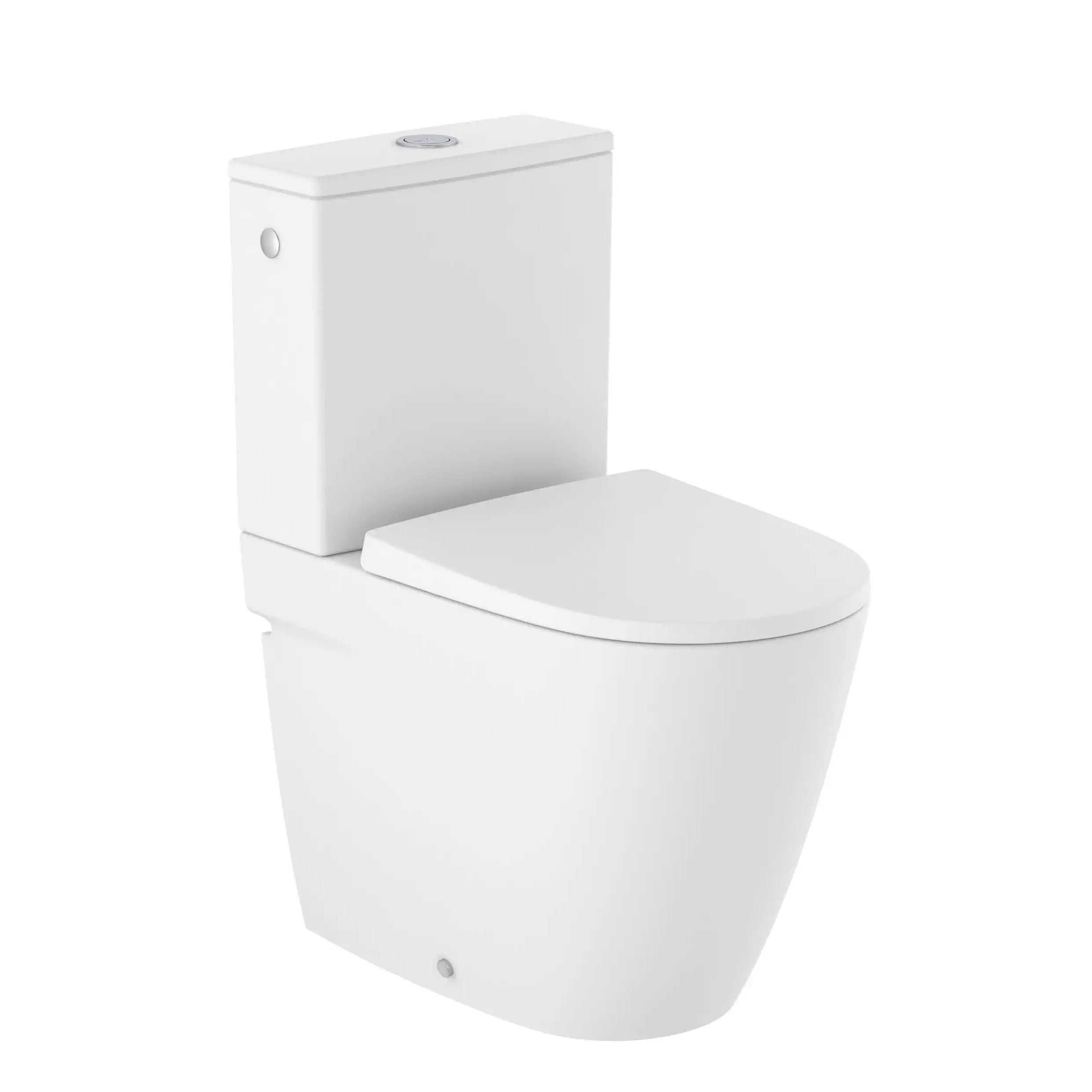

Roca Ona Rimless Low-Tank Toilet | Dual Outlet | Wall-Hung Design | White

The Hygiene Problem Hidden Inside Every Traditional Toilet — And How Rimless Technology Solves It

There is a feature present on virtually every traditional toilet that most people clean around, over, and under for years without ever thinking about what it actually is or why it exists. It is the interior rim — the projecting ledge of ceramic that runs around the inside of the bowl just below the waterline, through which flush water is distributed around the bowl surface during each flush.

The rim is not a design choice. It is an engineering constraint from an earlier era of toilet design, when the only available method for distributing flush water around the full interior surface of the bowl was to create a horizontal channel running around the circumference of the bowl through which water could flow. The rim houses this channel. The flush water enters the rim channel and exits through apertures or perforations distributed around its underside, directing water down the bowl surface.

The problem is that the rim creates a permanently enclosed space — a cavity with multiple openings, a horizontal surface, and areas that are physically inaccessible to a toilet brush — in a location that is continuously exposed to contamination from every flush. Aerosolised water droplets, mineral scale from the water supply, and biological deposits accumulate in the rim channel and on the underside of the rim ledge with every use. Standard cleaning tools cannot reach these surfaces. Standard cleaning products that are applied to the visible bowl surface do not penetrate the enclosed rim geometry.

The result is a pattern that will be familiar to anyone who has ever removed a toilet seat and looked carefully at the underside of a traditional rim: discolouration, scale deposits, biological film accumulation, and the beginning of staining that no amount of visible bowl cleaning will address, because the source of the contamination is not the visible bowl surface — it is the inaccessible rim cavity.

Rimless technology eliminates the rim entirely. The Roca Ona Rimless uses a completely different water distribution architecture — one that addresses the flush distribution problem without creating an enclosed, inaccessible cavity. The result is a toilet whose entire interior surface is directly accessible for cleaning, and whose flush system is engineered to deliver superior coverage without the hygiene liability of the traditional rim.

This is not a minor refinement. It is a fundamental redesign of one of the most used and least considered elements in the modern bathroom.

Product Specifications

How the Rimless System Works: Internal Water Distributor and Drag-Type Discharge

Understanding why the Ona Rimless represents a genuine engineering advance requires understanding how its flush system differs from the traditional rim model — and what specific design choices replace the functions that the rim previously performed.

The Internal Water Distributor

In a traditional toilet, the rim channel serves as both the water delivery pathway and the water distribution mechanism: flush water travels through the channel, exits through the rim perforations, and flows down the bowl surface by gravity. The distribution of water coverage across the bowl surface depends on the positioning and size of the rim perforations, and the flow path follows the rim geometry — which means the coverage pattern is constrained by the physical shape and condition of the rim channel itself.

The Roca Ona Rimless replaces this system with an internal water distributor — a purpose-designed component integrated into the bowl geometry that directs flush water in a controlled, defined pattern across the entire interior bowl surface without requiring a rim channel to do so. The distributor is positioned to create a powerful, uniform flush that reaches the full bowl surface from the point where water enters the bowl.

The key difference is that the water distribution mechanism is engineered as a deliberate, controlled system rather than as a consequence of water following the path of least resistance through a peripheral channel. The coverage is designed in — not left to the variability of rim geometry and condition. The result is a flush that Roca describes as powerful and uniform, without the splashing that can occur when flush water exits rim perforations at angles that direct water upward rather than down the bowl surface.

Drag-Type Discharge

The Ona uses a drag-type unloading system — a flush mechanism in which water enters the bowl in a direction that creates a strong hydraulic drag effect, pulling waste material and contaminated water toward the outlet rather than relying solely on the volume of water delivered to achieve evacuation.

Drag-type flush systems are recognised for their effectiveness in achieving complete bowl evacuation with a relatively modest water volume — a characteristic that is directly relevant to the Ona's dual-flush cistern specification of 4.5/3 litres. The drag effect means that the 3-litre partial flush is capable of achieving effective bowl clearance for liquid waste, because the hydraulic action of the water entry augments the purely volumetric flushing effect. At 4.5 litres for solid waste, the drag system achieves thorough bowl clearance with a water volume that is meaningfully below the 6–9 litre flush volumes of older toilet designs.

The combination of the internal water distributor and the drag-type discharge system produces a toilet whose flush performance is engineered from first principles, not derived from the constraints of an inherited design. Every aspect of the water delivery and bowl evacuation is a deliberate design choice — and the absence of the rim means there is no inaccessible cavity where the consequences of any performance shortfall can accumulate unseen.

Why Rimless Matters for Real-World Bathroom Hygiene

The practical implications of rimless technology extend beyond the flush mechanics. The most significant day-to-day benefit of a rimless toilet is the change it makes to the cleaning routine — specifically, to what can actually be cleaned and how thoroughly.

Every Surface Is Directly Accessible

In a rimless bowl, every interior surface is visible and reachable from the top of the bowl. The toilet brush can reach the full bowl surface in a single cleaning motion without needing to angle under a rim overhang or reach into a channel cavity. Visual inspection can confirm that the cleaning is complete — there is no enclosed area where deposits can accumulate out of sight.

This accessibility is not only about convenience. It is about the actual microbiological condition of the toilet between cleaning sessions. A surface that can be effectively cleaned with standard tools and standard products will maintain a lower level of biological and mineral contamination than a surface with inaccessible cavities that resist cleaning regardless of the effort applied. The rim is, in practical terms, a permanent reservoir for the contamination that every flush generates — a reservoir that a rimless design simply does not have.

Reduced Scale and Mineral Deposit Accumulation

The enclosed rim channel of a traditional toilet is a location where flush water is in prolonged contact with the ceramic surface — flowing through the channel for the duration of each flush and then leaving residual water to evaporate and deposit minerals. In hard water areas, this process progressively deposits calcium carbonate in the rim channel, reducing the effective diameter of the perforations over time and eventually changing the distribution pattern of the flush — directing water at angles that were not intended in the original design.

In a rimless bowl, flush water contacts the bowl surface directly and drains immediately through the outlet. There is no enclosed channel where residual water can pool and evaporate. The mineral scale accumulation that progressively degrades traditional rim function over the years of installation is not a factor in a rimless design.

Uniform Hygiene Across the Entire Bowl Surface

The internal water distributor of the Ona Rimless is designed to deliver flush water to the full bowl surface uniformly — not to the portions of the bowl surface below rim perforations only. In traditional rim toilets, the coverage pattern of the flush is determined by the positions and conditions of the rim perforations, which may not deliver uniform coverage to all areas of the bowl, particularly around the front bowl area where the rim geometry may not provide direct water delivery.

The Ona's distributor provides coverage by design to the complete bowl surface, supporting the even distribution of fresh water that makes each flush effective at maintaining a clean bowl surface between dedicated cleaning sessions.

Dual Outlet: The Installation Flexibility That Changes Everything in Renovation

One of the most practically significant specifications of the Roca Ona Rimless is its dual outlet — the ability to connect the toilet's evacuation pipe to either a horizontal or vertical drainage point in the floor or wall.

This specification is critical in the context of bathroom renovation, which represents the majority of toilet installations in existing residential properties. Renovation projects do not offer the freedom of new construction — the drainage pipe is already positioned at a fixed location, and the toilet must work with that location. The drainage arrangement in European residential construction is not standardised: different construction eras, different building traditions, and different original specification choices produce an enormous variety of drainage pipe positions and orientations in existing bathrooms.

Horizontal Outlet

A horizontal outlet connects the toilet to a drainage pipe that exits through the rear wall of the toilet installation area — typically positioned at or near floor level in the wall behind where the toilet sits. This drainage arrangement is common in construction traditions where the soil pipe runs within the wall structure rather than through the floor slab.

Vertical Outlet

A vertical outlet connects the toilet to a drainage pipe that exits downward through the floor — the drainage arrangement typical in construction where the soil pipe runs below the floor slab and connects upward to the toilet outlet.

Why Dual Outlet Compatibility Matters

A toilet that is specified for only one outlet type is incompatible with approximately half of all existing drainage arrangements in European residential construction. Specifying a toilet with dual outlet compatibility means the product can be installed in either drainage configuration without modifications to the drainage system — the included evacuation elbow provides the connection geometry for whichever outlet orientation the existing drainage requires.

For renovation projects, dual outlet compatibility means the toilet can be selected on the basis of its design, hygiene, and performance credentials — not constrained by the drainage arrangement that happens to be present. The Roca Ona Rimless with its dual outlet specification is compatible with the full range of European residential drainage configurations.

The evacuation elbow and fixing kit included with the toilet provide the complete connection hardware for installation, regardless of the outlet orientation used.

Floor-Standing, Wall-Hung: Understanding the Installation Type

The Roca Ona Rimless uses a specific installation format that deserves explanation, because it combines elements that are sometimes confused with purely wall-mounted (suspended) toilet installation: it is floor-standing but wall-hung — meaning the toilet bowl rests on the floor and takes its structural load through its base, while also being attached to the wall for stability.

This is distinct from the suspended wall-hung toilet format, in which the bowl is attached to a concealed carrier frame within the wall and has no contact with the floor at all. The floor-standing wall-hung format of the Ona means:

Simpler installation: No concealed carrier frame is required. The toilet installs against the wall using the included fixing kit, which secures it to the wall surface for stability without requiring a structural frame within the wall.

Standard cistern: The Ona uses a conventional low-level cistern positioned directly on top of or adjacent to the toilet bowl — visible, accessible, and serviceable without opening a false wall. The optional Roca Ona cistern is a standard external cistern, not a concealed in-wall cistern.

Accessible plumbing: All connections — water supply, outlet drainage, cistern mechanisms — are made at standard accessible positions and can be serviced by a plumber without specialist equipment or wall access.

Broad installation compatibility: Because the toilet rests on the floor and attaches to the wall surface, it can be installed in virtually any bathroom configuration where floor space and rear wall access are present. There is no requirement for a structural carrier frame, no requirement for a reinforced wall section, and no minimum floor void depth.

This installation format makes the Ona Rimless particularly well-suited to renovation contexts where the bathroom structure was not designed for a concealed-cistern wall-hung installation — the format that now dominates the premium bathroom market but requires specific structural preparation that many existing bathrooms do not have.

The Roca Ona Cistern: Dual Flush and Connection Options

The optional Roca Ona cistern is specified with a dual flush 4.5/3 litre system — the two-button format that allows the user to select the appropriate flush volume for the waste type, with the smaller 3-litre flush for liquid waste and the full 4.5-litre flush for solid waste.

The water saving implications of the dual flush system across a typical household use pattern are significant. A standard single-flush toilet typically delivers 6–9 litres per flush regardless of the requirement. Replacing this with a 4.5/3 litre dual flush system reduces the average flush volume — assuming approximately 60% of flushes are at the smaller volume — to an effective average of approximately 3.6 litres per flush. Across the typical 4–6 flushes per person per day in a household, the annual water saving per toilet is substantial and compounds across the installation lifetime.

The cistern is available in two connection configurations:

Bottom-feed cistern (A341681000): The water supply connection enters the cistern from the base, below the water line. This configuration completely hides the supply pipe connection within the cistern body, producing a cleaner external appearance with no visible pipework above the cistern base.

Side-feed cistern (A341680000): The water supply connection enters from the side of the cistern. This is the traditional cistern connection arrangement, compatible with the majority of standard plumbing supply configurations.

The choice between bottom-feed and side-feed depends on the water supply pipe routing in the specific installation — confirm the position of the supply pipe stub-out with your plumber before selecting the cistern configuration.

The cistern includes a fixing system, feeding mechanism, and discharge mechanism — all components required for complete cistern assembly and operation are included; no supplementary components are required for a fully functional installation.

The Supralit® Antibacterial Seat: Material Science in the Most Critical Contact Surface

The seat and lid of the Roca Ona Rimless are manufactured in Supralit® resin — a material specification that warrants specific attention, because the toilet seat is the primary human contact surface in the bathroom environment and its material properties directly affect both hygiene and durability.

Antibacterial Properties

Supralit® resin is formulated with antibacterial properties — an active characteristic of the material itself, not a surface coating applied after manufacture. This distinction matters because surface coatings are subject to degradation: they are removed by cleaning products, abraded by regular use, and compromised by scratches or impacts. A material whose antibacterial properties are intrinsic to its composition retains these properties regardless of surface wear or the cleaning products applied to it.

In the context of a toilet seat — a surface exposed to daily use, regular cleaning with products that may include bleach or other strong disinfectants, and the cumulative surface wear of years of operation — intrinsic antibacterial properties represent a genuinely durable hygiene characteristic rather than a property that degrades from day one of installation.

Durability and Ease of Cleaning

Supralit® resin is a dense, non-porous material. Non-porosity is a significant characteristic for bathroom surfaces: porous materials absorb liquids and organic material into the surface structure itself, making thorough cleaning difficult and creating conditions where contamination can survive standard cleaning procedures. A non-porous resin surface can be cleaned to its full depth with every cleaning cycle — there is no sub-surface reservoir where contamination can persist.

The density of the Supralit® material also provides resistance to the surface scratching and cracking that affect lower-quality plastic toilet seats over time. Scratches and surface cracks in a toilet seat are not only aesthetic problems — they create sites where bacterial colonisation and organic material accumulation can occur that are resistant to cleaning, creating the same type of hygiene liability in miniature that the traditional toilet rim creates in the bowl.

Stainless Steel Hinges and Easy-Clean Design

The seat is mounted on stainless steel hinges — a materials choice that prevents the corrosion and discolouration that affects zinc-alloy or chrome-plated hinges in the bathroom environment over time. Stainless steel hinges maintain their appearance and structural integrity across years of daily use and regular cleaning with bathroom cleaning products.

The easy-clean hinge design supports removal of the seat from the toilet for thorough cleaning of the hinge mounting area on the toilet bowl — a zone that is notoriously difficult to clean in traditional fixed-hinge seat designs, and one that accumulates contamination in the gap between the seat mounting base and the ceramic bowl surface. Removable seat systems that allow complete cleaning access to the hinge zone represent a genuine hygiene improvement over fixed hinge designs.

Matching Finish

The seat is finished to match the white glaze of the Ona Rimless bowl — both the colour and the surface quality are coordinated with the bowl finish. The seat dimensions (36.3 cm wide × 41.7 cm deep × 4.5 cm high) and the standard 20 cm fixing hole distance are specified to ensure that the seat is precisely fitted to the Ona bowl geometry.

Two seat options are available:

Standard seat with lid (A801E20001): A conventional lid and seat with the full Supralit® antibacterial specification and stainless steel hinges.

Soft-close seat with lid (A801E22001): The same seat with the addition of a soft-close mechanism that prevents the lid and seat from slamming when lowered — a feature that eliminates impact noise and wear at the hinge points, extending the mechanical service life of the seat and eliminating the characteristic noise of a seat dropped in haste.

The Ona Collection and Roca as a Brand

The Ona Rimless toilet belongs to the Roca Ona collection — a bathroom range designed around rounded forms and a clean modern aesthetic that prioritises the appearance of simplicity achieved through resolved design rather than decorative complexity. The Ona bowl's rounded design softens the visual geometry of the toilet within the overall bathroom composition, complementing both minimalist bathroom schemes and more traditional spatial treatments.

Roca is one of the most significant bathroom product manufacturers in the world, with commercial operations in more than 130 countries and a heritage in bathroom innovation extending back to its founding in Spain in 1917. The brand's scale — which supports substantial investment in manufacturing quality, material research, and design development — is directly reflected in the specifications of products like the Ona Rimless: the Supralit® antibacterial seat material, the internal water distributor engineering, and the dual outlet evacuation compatibility are product-level investments that only a manufacturer with genuine technical resources and a commitment to differentiated performance can sustain across a full product line.

Roca's presence in professional specification — in architectural projects, hotel developments, and healthcare environments where product performance is assessed at a level of rigour that consumer retail does not routinely apply — provides an independent validation of the brand's quality standards that is meaningful for the residential buyer evaluating a long-term bathroom investment.

Dimensions and Installation Planning

The Ona Rimless bowl dimensions — 37 cm wide × 60 cm deep × 78.5 cm high — represent a relatively compact floor footprint for a floor-standing toilet, making the toilet suitable for bathrooms where space efficiency is a consideration without the structural complexity of a concealed-cistern suspended installation.

The 37 cm width is a compact specification: standard toilets range from approximately 35 cm to 40 cm in width, and the 37 cm width of the Ona allows comfortable clearance from adjacent bathroom elements such as vanity units, bath edges, or partition walls without requiring the minimum 40 cm clearance of wider models.

The 60 cm depth (projection from the wall) is within the standard range for low-tank toilets, which typically extend 60–70 cm from the wall face. The cistern is positioned above the bowl rather than behind it in a separate wall-mounted position, so the combined depth of the installation (bowl projection plus cistern depth above) is the principal space consideration for installation planning — confirm the available depth in the intended installation position before committing to the product specification.

The 78.5 cm height is a standard toilet height — the rim height (seat-to-floor measurement) will be approximately 40–42 cm in the installed configuration, within the standard range for toilet seat height in European residential and commercial installation.

Installation Overview

The Roca Ona Rimless installs as a complete package with the bowl, cistern, and seat specified and purchased together. The installation sequence is:

1. Drainage connection: The evacuation elbow (included) connects the dual outlet of the bowl to the existing drainage pipe. The outlet orientation — horizontal or vertical — is determined by the drainage arrangement at the installation point and configured using the included elbow.

2. Bowl positioning and fixing: The bowl is positioned against the wall at the measured installation point and fixed using the included fixing kit. The stud positions on the floor and wall are marked, drilled, and anchored before the bowl is secured.

3. Cistern installation: The Ona cistern is positioned on or above the bowl (depending on the specific installation configuration) and connected to the water supply using the bottom-feed or side-feed inlet fitting. The cistern mechanisms (feed, discharge, dual flush button) are included with the cistern.

4. Seat fitting: The Supralit® seat is fitted to the bowl using the hinge mounting system and the 20 cm fixing hole positions on the bowl.

⚠️ All drainage and water supply connections must be made by a qualified plumber in compliance with local plumbing regulations. The product should be installed on a structurally sound floor and wall surface capable of supporting the combined weight of the toilet, cistern, and user. Note: actual hinges may differ from those shown in product images — refer to the exploded view diagram for the current model configuration.

Summary: Is the Roca Ona Rimless the Right Toilet for Your Bathroom?

✅ Rimless technology — no interior rim channel; eliminates the inaccessible cavity that makes traditional toilet bowls structurally resistant to thorough cleaning; the entire bowl surface is directly accessible to standard cleaning tools
✅ Internal water distributor — engineered water distribution system that delivers powerful, uniform, splash-free flush coverage to the complete bowl surface without a rim channel
✅ Drag-type discharge — hydraulic flush action that achieves effective bowl evacuation with reduced water volume; compatible with the 4.5/3 litre dual flush cistern specification
✅ Dual outlet (horizontal + vertical) — compatible with both wall-exit and floor-exit drainage configurations; eliminates drainage incompatibility as a constraint on toilet selection in renovation projects; evacuation elbow included
✅ Floor-standing, wall-hung installation — no concealed carrier frame required; standard cistern; fully accessible plumbing connections; suitable for all standard bathroom constructions without specialist structural preparation
✅ Compact dimensions — 37 × 60 × 78.5 cm; space-efficient floor footprint for a low-tank toilet
✅ Optional Roca Ona cistern — dual flush 4.5/3 litres; available in bottom-feed and side-feed configurations; includes all internal mechanisms
✅ Supralit® antibacterial seat — intrinsic antibacterial properties throughout the material composition, not a degradable surface coating; non-porous; resistant to surface wear and cracking
✅ Stainless steel hinges — corrosion-resistant; easy-clean removable design for complete access to hinge mounting zone
✅ Two seat options — standard lid and seat or soft-close lid and seat
✅ Rounded Ona design — contemporary form in white finish that integrates with a wide range of bathroom aesthetics
✅ Roca manufacture — brand with 100+ years of bathroom product engineering, present in 130+ countries, specified in professional and architectural contexts internationally
✅ EAN: 8433290195781 | SKU bowl: A342688000

💡 Specification note: When planning the installation of the Ona Rimless, confirm the drainage pipe orientation (horizontal or vertical) before purchase to ensure correct configuration of the evacuation elbow, and confirm the water supply pipe position (bottom or side entry) to select the appropriate cistern configuration (A341681000 for bottom feed, A341680000 for side feed). Both configurations deliver identical performance — the choice is determined entirely by the existing plumbing at the installation point.
